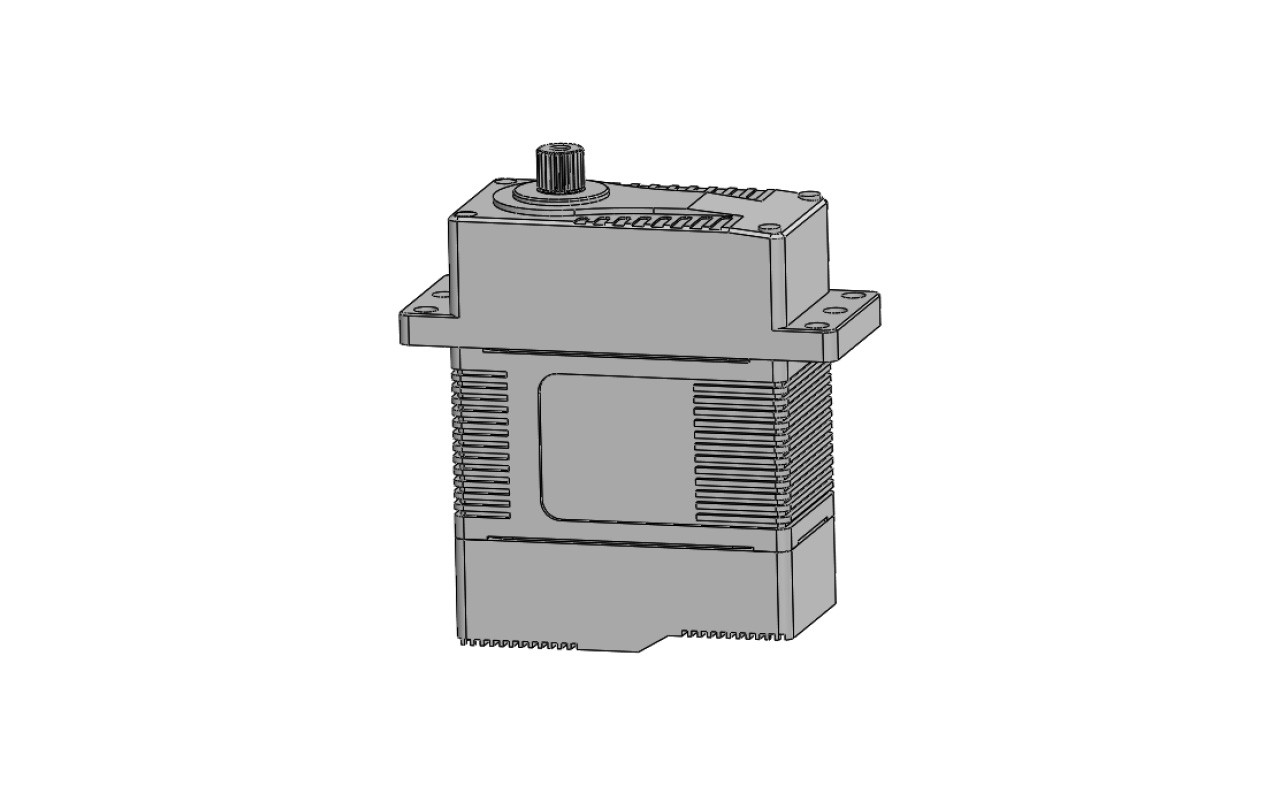

X50-28-350-3.1 V8.0 HLS / CANBUS Standard Frame
Preis auf Anfrage
Momentan ausverkauft, Lieferzeit: 10 - 14 Tage
Produktnummer:
KST-2270
EAN:
4260461682665
Hersteller-Nr.:
X50-28-350-3.1 HLS
X50-28-350-1 V8.0 HLS / CANBUS Standard Frame
Technische Daten
Signal: CANBUS Standard Frame
Rated Voltage: DC28V
Voltage Range: DC24V-32V
Stalling Torque: 35N.m@28V
Rated Torque: 9N.m@28V
No-load Speed: 0.22sec/60°@28V
Rated Speed: 0.28sec/60°@28V
Stalling Current: 8.0A
Rated Current: 1.90A
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50°=100° Total
Temperature Range: -20?……+65?
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 86.8mm*45mm*109mm±0.2mm
Weight: 860g±10%
Ball Bearing: 7 BB
Programmierbar mit KST-Tool 3 und KST-Tool 5
Technische Daten
Signal: CANBUS Standard Frame
Rated Voltage: DC28V
Voltage Range: DC24V-32V
Stalling Torque: 35N.m@28V
Rated Torque: 9N.m@28V
No-load Speed: 0.22sec/60°@28V
Rated Speed: 0.28sec/60°@28V
Stalling Current: 8.0A
Rated Current: 1.90A
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50°=100° Total
Temperature Range: -20?……+65?
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 86.8mm*45mm*109mm±0.2mm
Weight: 860g±10%
Ball Bearing: 7 BB
Programmierbar mit KST-Tool 3 und KST-Tool 5
