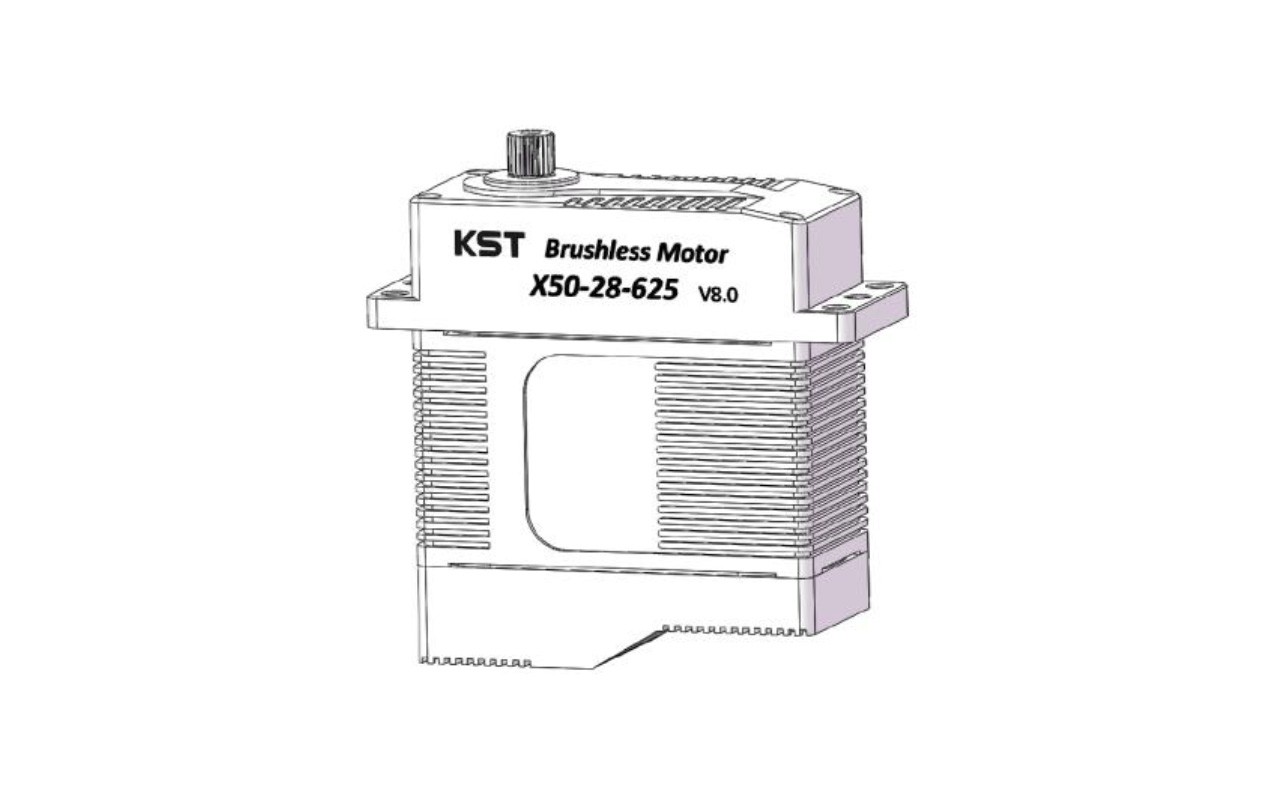

X50-28-625-3.1 V8.0 HLS / CANBUS Standard Frame
Preis auf Anfrage
Momentan ausverkauft, Lieferzeit: 10 - 14 Tage
Produktnummer:
KST-2275
EAN:
4260461682696
Hersteller-Nr.:
X50-28-625-3.1 HLS
X30-28-625-3.1 V8.0 HLS / CANBUS Standard Frame
Technische Daten
Signal: CANBUS Standard Frame
Rated Voltage: DC28V
Voltage Range: DC24V-32V
Stalling Torque: 62.5N.m@28V
Rated Torque: 20.0N.m@28V
Stalling Current: 10.0A
Rated Current: 2.20A
No-load speed: 165°/S@25?
Rated Speed: 120°/S@25?
Travel Angle: ±50°@1000-2000us
Operating Temperature Range: -20?……+65?
Case Material: Aluminum Alloy 7075
Splash Surface Treatment: Optional
Salt Water Resistance: Optional
EMI/RFI Shielding: Optional
Motor Type: Brushless
Gear Set Material: Titanium/Hardened Steel
Position Sensor: Potentiometer
Position Feedback: Optional
Shielded Connecting Cable: J30J-15TJL(900mm)
(1500mm:Optional)
Ball Bearing: 7 BB
Programmierbar mit KST-Tool 3 und KST-Tool 5
Technische Daten
Signal: CANBUS Standard Frame
Rated Voltage: DC28V
Voltage Range: DC24V-32V
Stalling Torque: 62.5N.m@28V
Rated Torque: 20.0N.m@28V
Stalling Current: 10.0A
Rated Current: 2.20A
No-load speed: 165°/S@25?
Rated Speed: 120°/S@25?
Travel Angle: ±50°@1000-2000us
Operating Temperature Range: -20?……+65?
Case Material: Aluminum Alloy 7075
Splash Surface Treatment: Optional
Salt Water Resistance: Optional
EMI/RFI Shielding: Optional
Motor Type: Brushless
Gear Set Material: Titanium/Hardened Steel
Position Sensor: Potentiometer
Position Feedback: Optional
Shielded Connecting Cable: J30J-15TJL(900mm)
(1500mm:Optional)
Ball Bearing: 7 BB
Programmierbar mit KST-Tool 3 und KST-Tool 5
